Product

It is more beautiful than you had imagined

CONCRETE PANEL

Product Description: “Differentiated concrete panels with various 3D designs and various colors” Design concrete panel is a construction technology that is installed directly on site after pre-fabrication of panels at the factory. Compared to the exposed concrete construction method of the general reinforced concrete pouring method, it can save costs by shortening the construction period and is less harmful to the human body. Quality problems and technical problems such as poor quality of exposed concrete that can occur in the exposed concrete method of on-site construction can be prevented in advance, thereby reducing repair costs.

Manual

Product Features

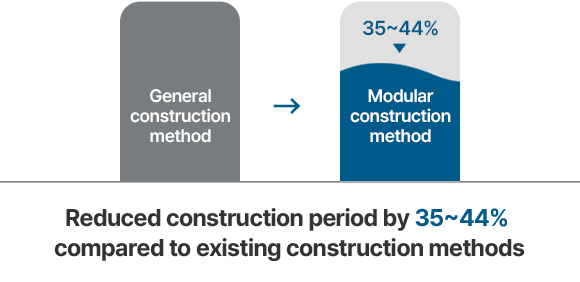

35 - 44% reduction in construction period compared to the existing method, reducing construction cost by about 30%

Using the rubber casting technology for tire manufacturing accumulated over 40 years, the company has secured the technology to perfectly reproduce various 3D designs. Since concrete panels are made by applying high-strength concrete that can realize various strengths and colors, it can more broadly meet the needs of customers who pursue artistic beauty.

제품특징

제품특징

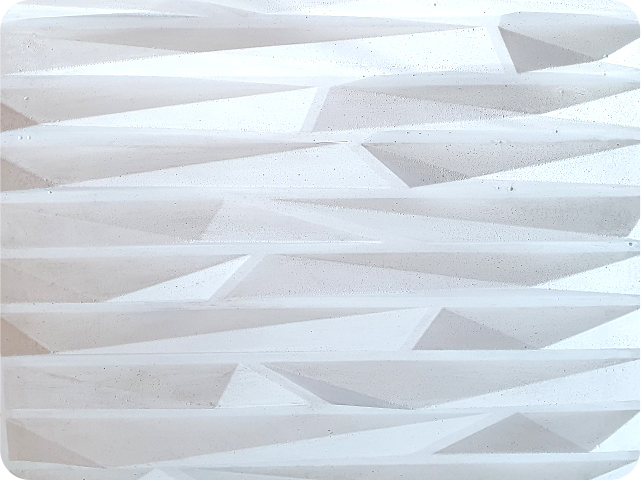

Panel Design (Possession Products)

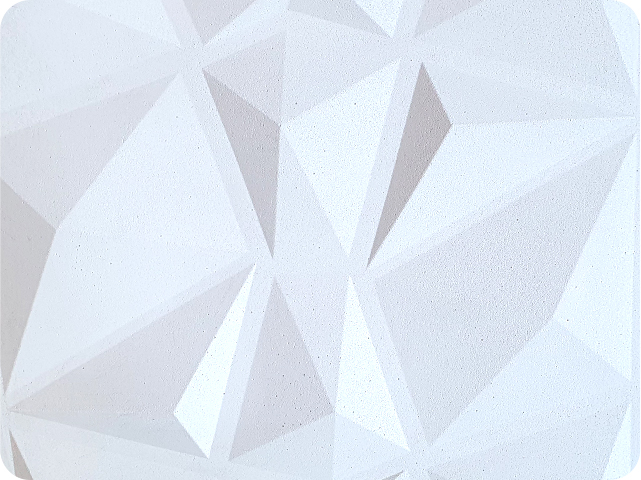

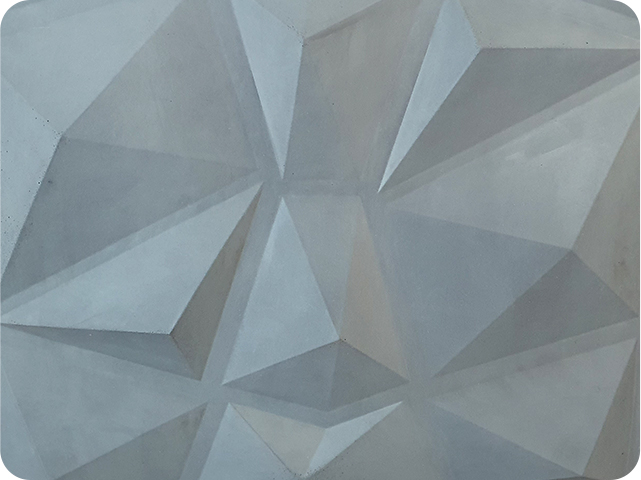

Diamond

Bamboo basket #1

Bamboo basket #2

Size (2 types) : 500mm * 500mm,
600mm * 900mm

Thickness (2 types) : HPC (40~50Mpa) -> 35mm, UHPC (80~100Mpa) -> 30mm

Color (4 types) : Gray, Yellow, Red, Green

Design (3 types) : Diamond, Bamboo basket #1, Bamboo basket #2

Diagon

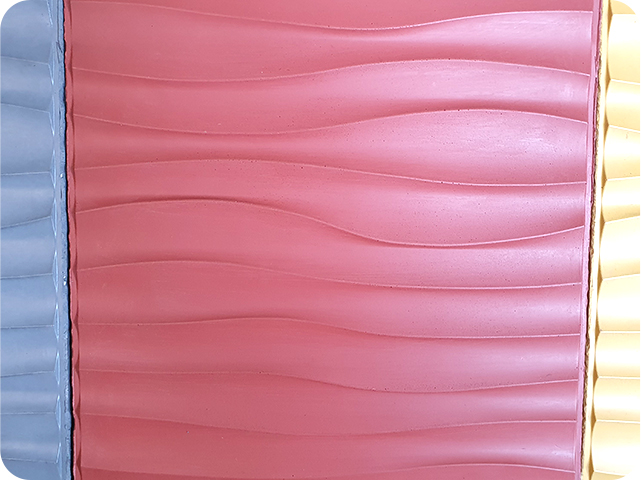

Wave

Warm

Size (1 types) : 300mm * 300mm

Thickness (1 types) : UHPC (80~100Mpa) -> 15mm

Color (4 types) : Gray, Yellow, Red, Green

Design (3 types) : Diagon, Wave, Warm

Design Concrete Panel Manufacturing Process

01

Design architecture
and panel

02

Produce a panel model

03

Fix the model to
the rubber mold production frame

04

Put the rubber mixture into
the production container

05

Release
rubber mould

06

Pour concrete

07

Release
concrete panel

08

Dry & dehydrated
treatment

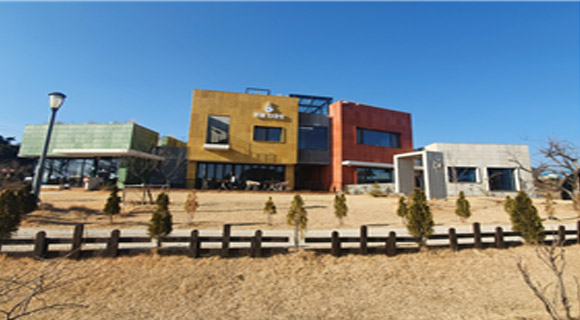

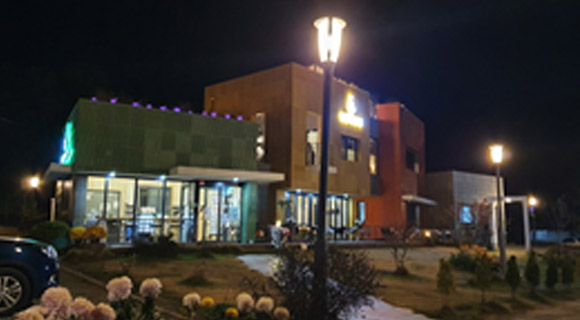

Construction Examples

시공사례

시공사례

Patent of original technology
